Features & Application
EVO SERIES
Through serious and deep research, L AUDIO proudly introduces the EVO Series Line Array System in 2026. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency. To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.
Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.
Product Speficication
Frequency Response 60Hz－18kHz
Power handling HF 100W (RMS) 400W (PEAK)
MF 250W (RMS) 1000W (PEAK)
LF 800W (RMS) 2400W (PEAK)
Max@S.P.L. 140dB
Component Section 2×10" neodymium woofer
1x8" neodymium MID
1×3" neodymium driver
Nominal impedance 8 ohm
Dispersion 75°H×40°V
Speaker cables 1(+)1(-)
Input connectors 2×NL4MP SPEAKON
Dimensions 700×310×460mm(W×H×D)
Enclosure 18mm+15mm Birch Plywood
Net weight 34kg
Remark：
The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.
L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
System Configuration

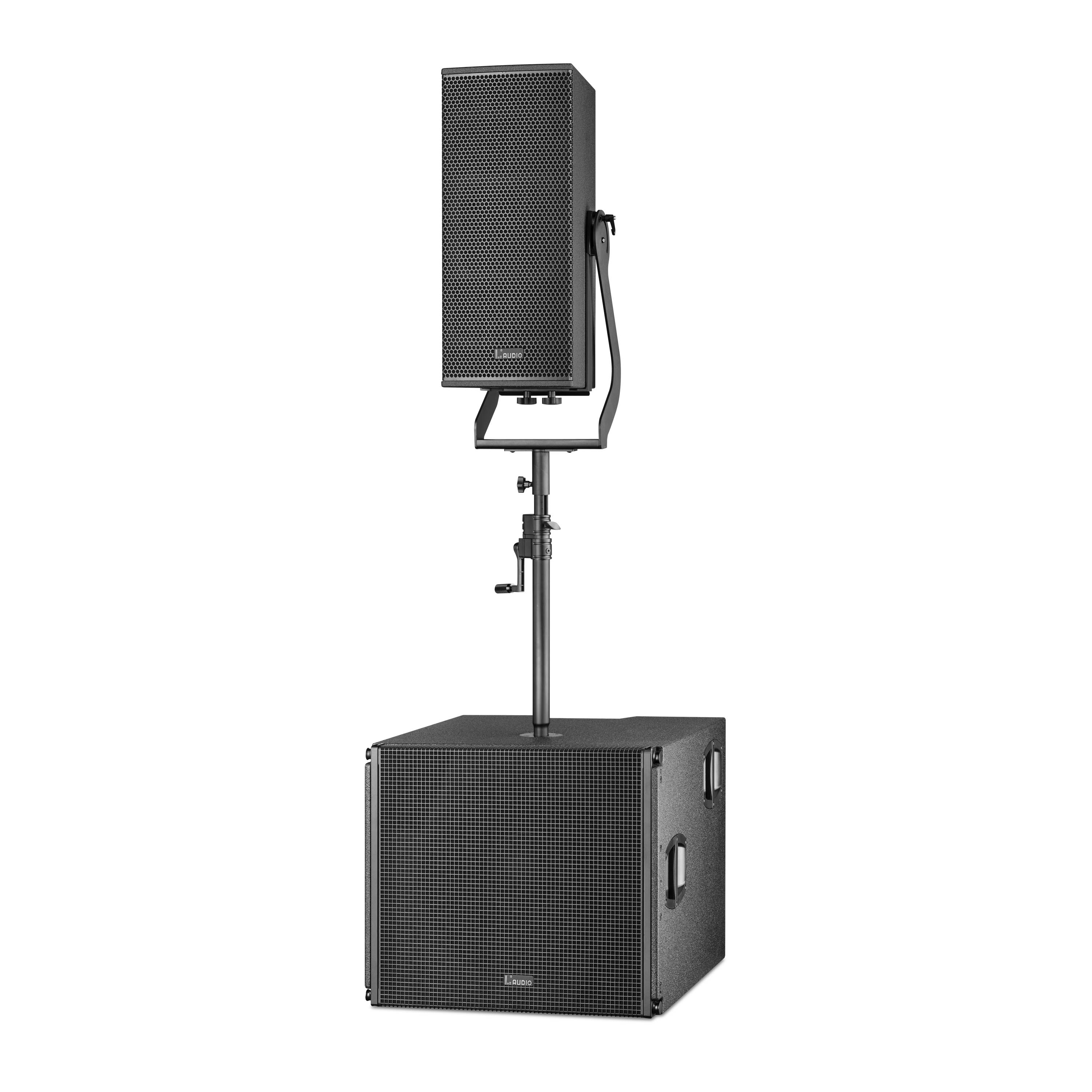

L AUDIO EVO 410
L AUDIO EVO 410SUB / EV0 218SUB / LA218SUB / LA221SUB
L AUDIO DS4.10 / DS4.13 / DK4.12 Amplifiers
L AUDIO DS2.20 / DK2.43 Amplifiers
L AUDIO DSP48 Processor
