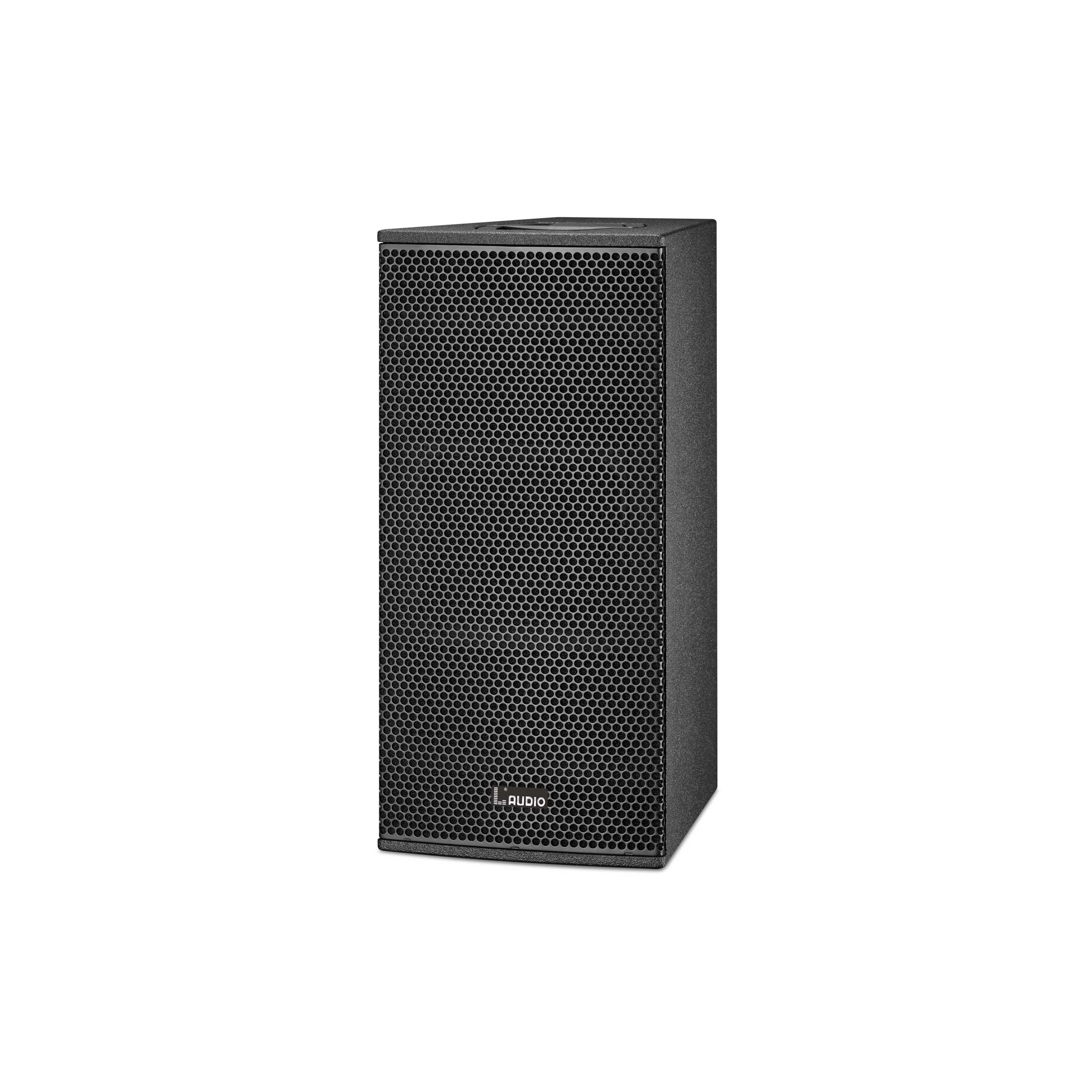

EVO SERIES

Through serious and deep research, L AUDIO proudly introduces the EVO Series Line Array System in 2026. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency.  To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.

Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.

Frequency Response              60Hz－18kHz

Power handling

HF 100W (RMS) 400W (PEAK)

MF 250W (RMS) 1000W (PEAK)

LF 800W (RMS) 2400W (PEAK)

Max@S.P.L.

140dB

2×10" neodymium woofer

1x8" neodymium MID

1×3" neodymium

driver

passive crossover network

Nominal impedance

8 ohm

Dispersion                              75°H×40°V

Speaker cables                       1(+)1(-)

Input connectors                    2×NL4MP SPEAKON

Dimensions                            700×310×460mm(W×H×D)

Enclosure                                18mm+15mm Birch Plywood

Net weight                              34kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
