Features & Application

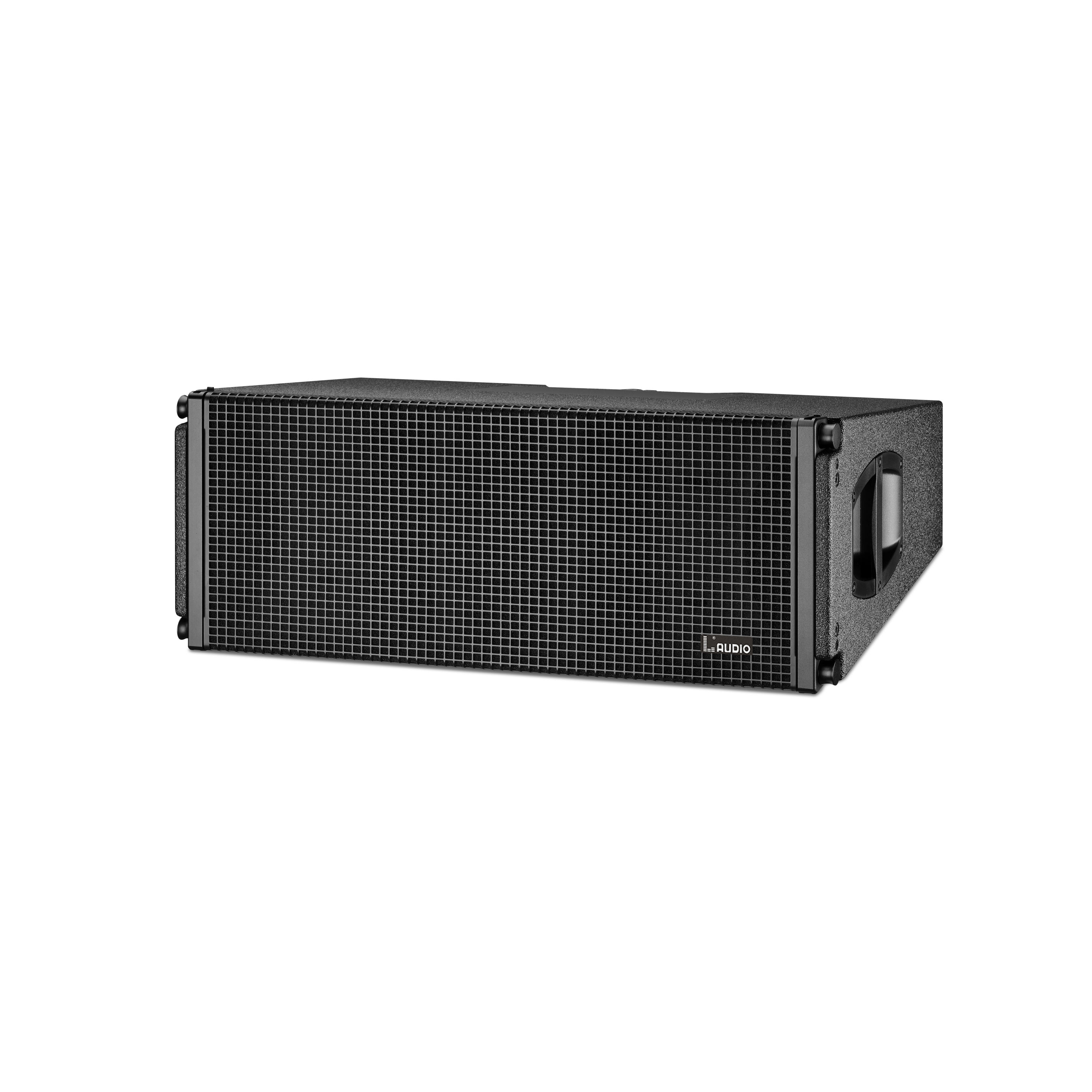

EVO SERIES
Through serious and deep research, L AUDIO proudly introduces the EVO Series Line Array System in 2026. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency. To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.
Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.
Product Speficication
Frequency Response 67Hz－18kHz
Power handling LF 500W (RMS) 2000W (PEAK)
Max@S.P.L. 142dB
Component Sections 2×10" neodymium woofer
1x8" neodymium MID
2×2.5" neodymium driver
Nominal impedance 8 ohm
Dispersion 80°H×14°V
Speaker cables 1(+)1(-)
Input connectors 2×NL4MP SPEAKON
Dimensions 700×310×460mm(W×H×D)
Enclosure Birch Plywood
Net weight 34kg
Remark：
The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.
L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
System Configuration
L AUDIO EVO 310
L AUDIO EVO 310SUB / EV0 218SUB / LA218SUB / LA221SUB
L AUDIO DS4.10 / DS4.13 / DK4.12 Amplifiers
L AUDIO DS2.20 / DK2.43 Amplifiers
L AUDIO DSP48 Processor
