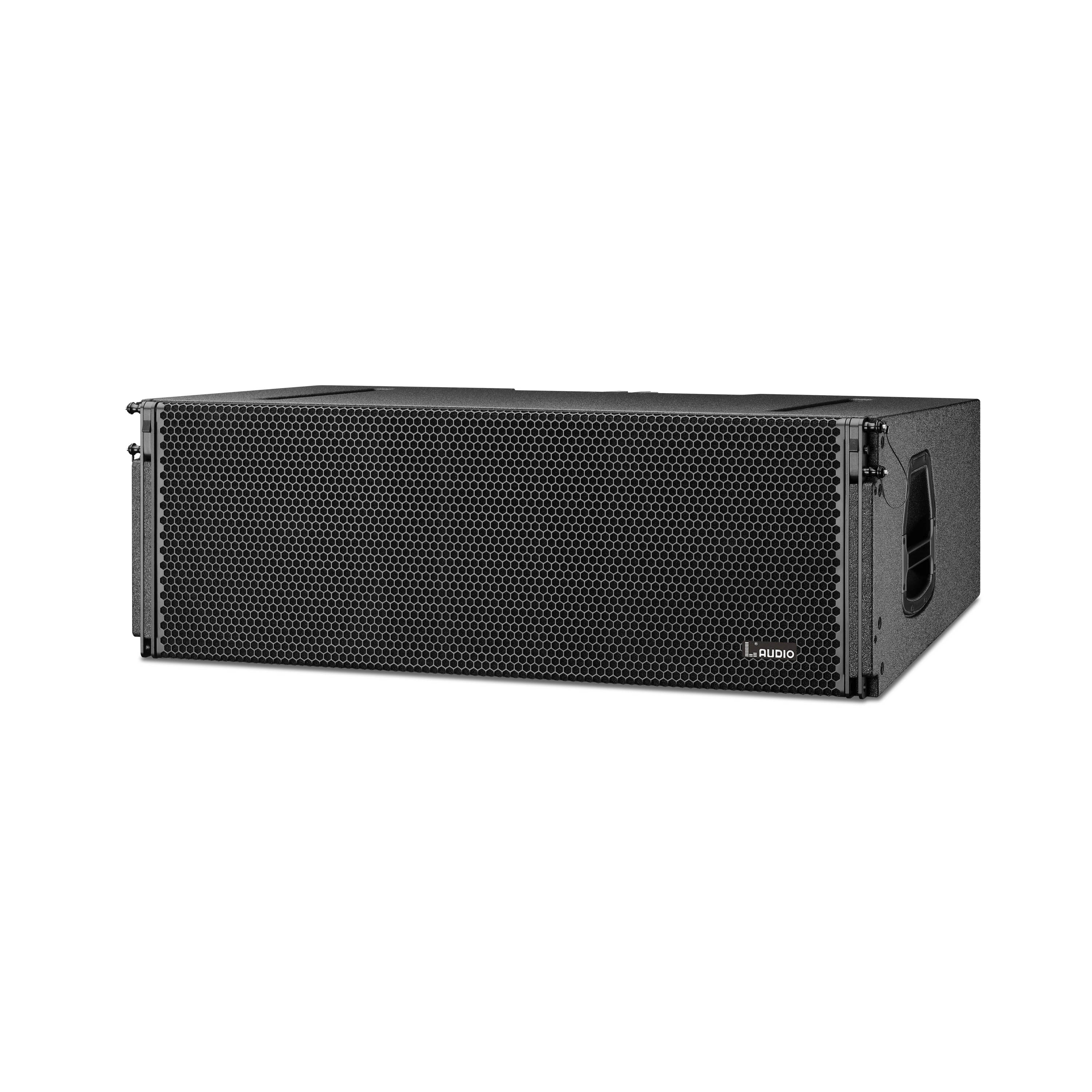

EVO SERIES

Through serious and deep research, L AUDIO proudly introduces the EVO Series Line Array System in 2026. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency.  To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.

Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.

Frequency Response              60Hz－18kHz
Power handling                      LF 1200W (RMS) 4800W (PEAK)
                                               MF 300W (RMS) 1200W (PEAK)
                                               HF 200W (RMS) 800W (PEAK)
Max@S.P.L.                             145dB
LF section                               2×12" neodymium woofer
Nominal impedance              16 ohm
MF section                             1x10" neodymium MID
Nominal impedance               8 ohm
HF section                              2×3" neodymium driver
Nominal impedance              16 ohm
Dispersion                              110°H×8°V
Speaker cables                       LF 1(+)1(-) MF 2(+)2(-) HF 3(+)3(-)
Input connectors                    2×NL8MP SPEAKON
Dimensions                            1100×360×570mm(W×H×D)
Enclosure                                Birch Plywood
Net weight                              60kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
