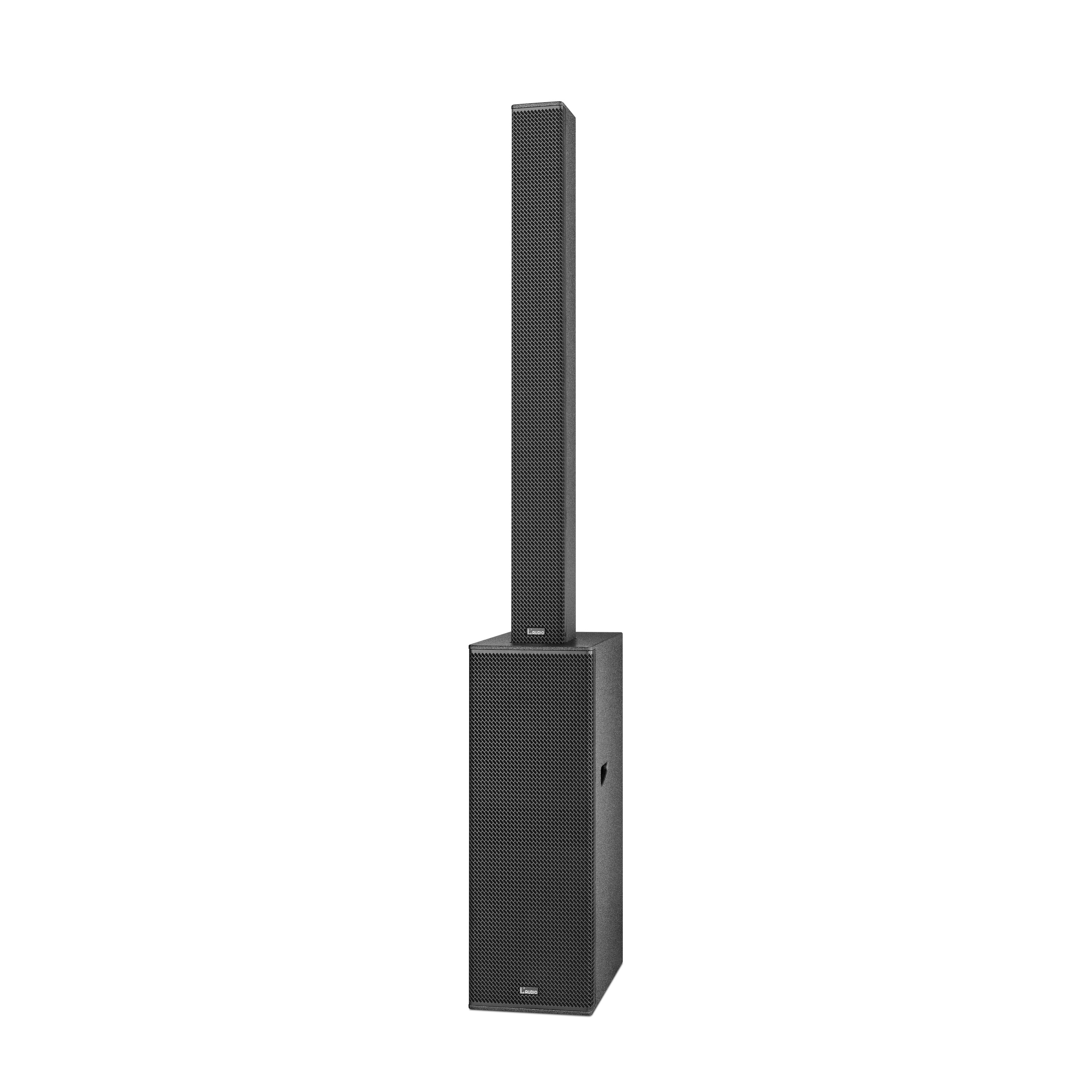

L AUDIO  M Series COLUMN ARRAY SYSTEM is a versatile mini array system with incisive and quick-motioned design. It is a Sub-compact loudspeaker system from L AUDIO, which delivers a breakthrough in the performance expectation of such a small and compact system.

Application
Conference center, conference rooms, auditoriums, museums, airports, stations, terminals, shopping malls, cafes, Multi-purpose hall, banquet hall, bar, clubs, home theater, small performances ect.

MODEL:  M5P

Frequency Response       87Hz－20kHz

Power handling               950W (RMS) 3800W (PEAK)

Sensitivity                        103dB(1W@1M)

Max@S.P.L.                      135dB(PEAK/1M)

section                             6x5''+ 3x1.75''

Nominal impedance        4 ohm

Speaker cables                 LF 1(+)1(-)

Input connectors              1×NL4MP speakon

Dimensions                      145×1300×170mm(W×H×D)

Enclosure                          Plywood

Net weight                        20 kg

Gross weight                     22kg

MODEL: M5SP

Frequency Response          45Hz－150Hz

Power handling                  1200W (RMS) 4800W (PEAK)

Sensitivity                            100dB(1W@1M)

Max@S.P.L.                          135dB(PEAK/1M)

LF section                            2×12" Neo woofer

Nominal impedance           4 ohm

Dimensions                         335×850×350mm(W×H×D)

Enclosure                            Birch Plywood

Net weight                          30kg

Gross weight                       32kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
