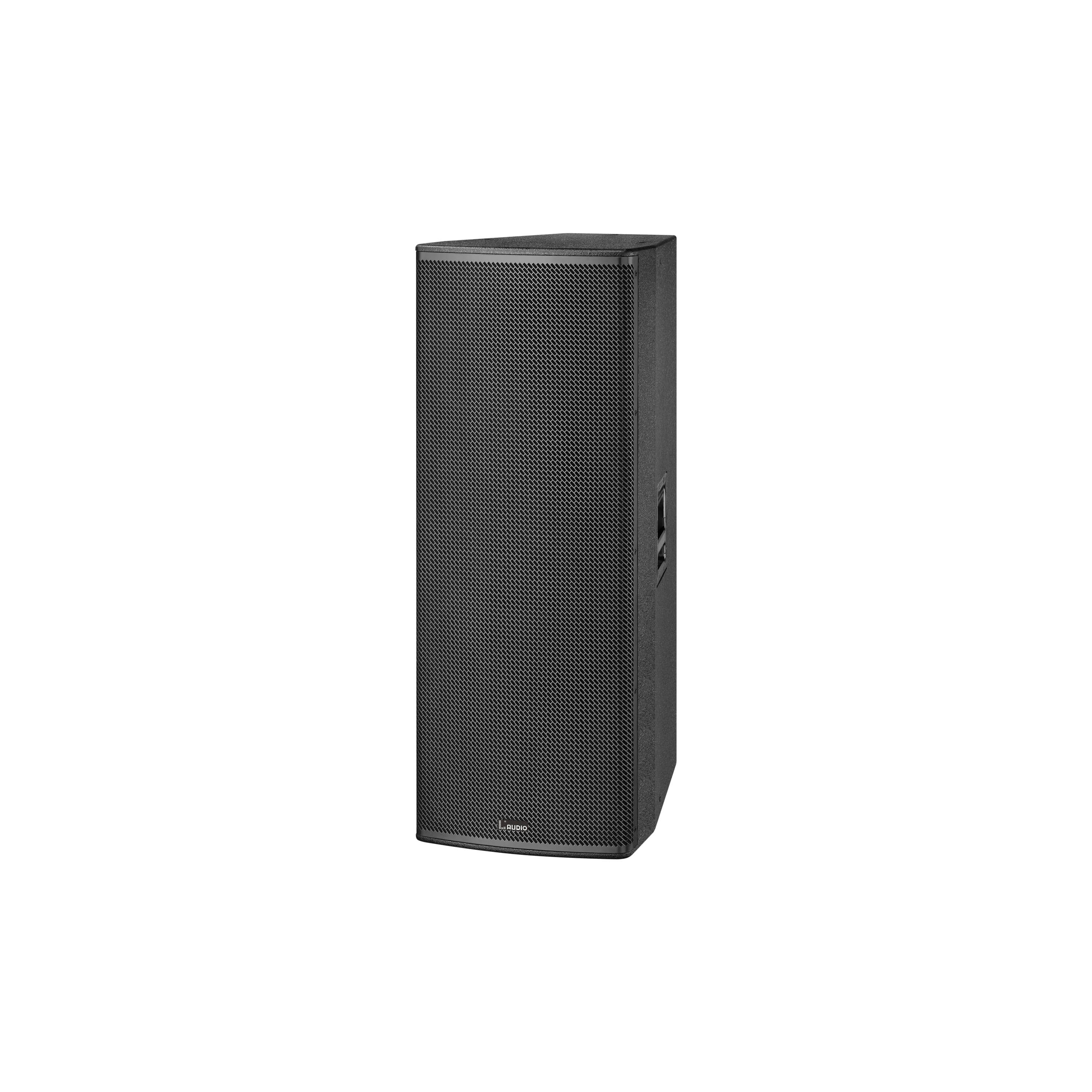

LX Series

LX series speaker is the latest entainment series in 2026 designed for live performance, KTV room, bar, etc. LX series is powered by drivers with the advange of excellent timbre and high durability. In addition, this drivers could withstand high power load for long time, but with high definition. Meanwhile, the LX speaker’s great coverage horn design promotes its high frequency dynamic acoustic pressure level and sound clarity.

Applications:
Sound reinforcement system for family karaoke, KTV, bars, clubs, nightclubs, dance halls, banquet halls, multi-function halls, lecture halls, gymnasiums and other places.

Frequency Response     46Hz－18kHz

Power handling             1400W (RMS) 5600W (PEAK)

Sensitivity                      108dB(1W@1M)

Max@S.P.L.                    134dB(PEAK/1M)

LF section                       2×15" woofer

Nominal impedance      4 ohm

HF section                      3" NEO compression driver

Nominal impedance      8 ohm

Dispersion                      90°H×60°V

Speaker cables               1(+)1(-)

Input connectors           2×NL4MP speakon

Dimensions                    530×1200×560mm(W×H×D)

Enclosure                       Plywood

Net weight                     54kg

Gross weight                  57kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
