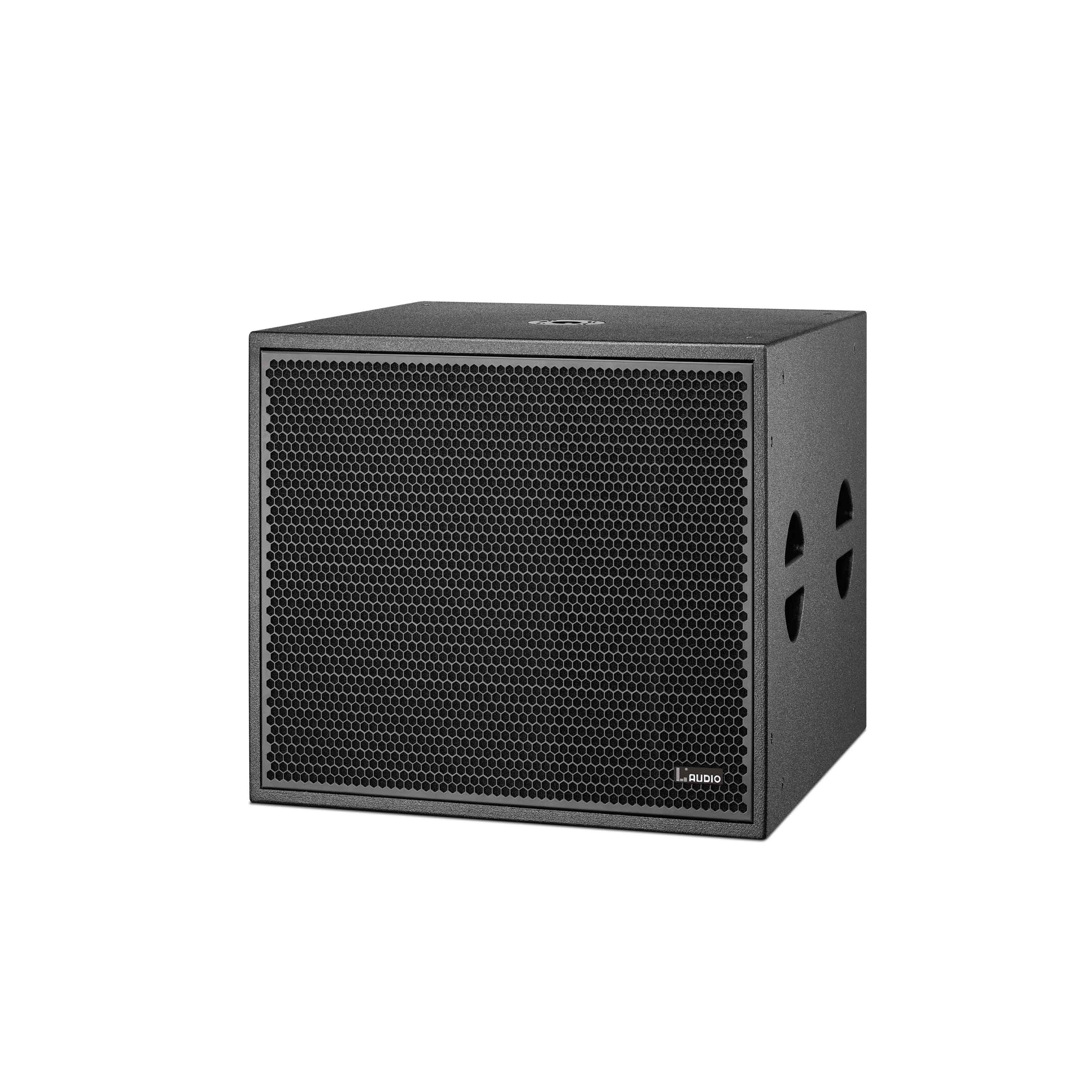

LX Series

LX series speaker is the latest entainment series in 2018 designed for live performance, KTV room, bar, etc. LX series is powered by drivers with the advange of excellent timbre and high durability. In addition, this drivers could withstand high power load for long time, but with high definition. Meanwhile, the LX speaker’s great coverage horn design promotes its high frequency dynamic acoustic pressure level and sound clarity.

Applications:

Frequency Response      36Hz－150Hz

Power handling             1200W (RMS) 4800W (PEAK)

Sensitivity                       98dB(1W@1M)

Max@S.P.L.                     138dB(PEAK/1M)

LF section                        1×18"  woofer

Nominal impedance      8 ohm

Speaker cables               1(+)1(-)

Input connectors            2×NL4MP

Dimensions                     700×550×700mm(W×H×D)

Enclosure                        Birch Plywood

Net weight                      41kg

Gross weight                   44kg

L AUDIO DS2.16 / DS2.20 AMPLIFIER

L AUDIO DSP36 / DSP48 PROCESSOR
