L AUDIO  M Series COLUMN ARRAY SYSTEM is a versatile mini array system with incisive and quick-motioned design. It is a Sub-compact loudspeaker system from L AUDIO, which delivers a breakthrough in the performance expectation of such a small and compact system.

Application
Conference center, conference rooms, auditoriums, museums, airports, stations, terminals, shopping malls, cafes, Multi-purpose hall, banquet hall, bar, clubs, home theater, small performances ect.

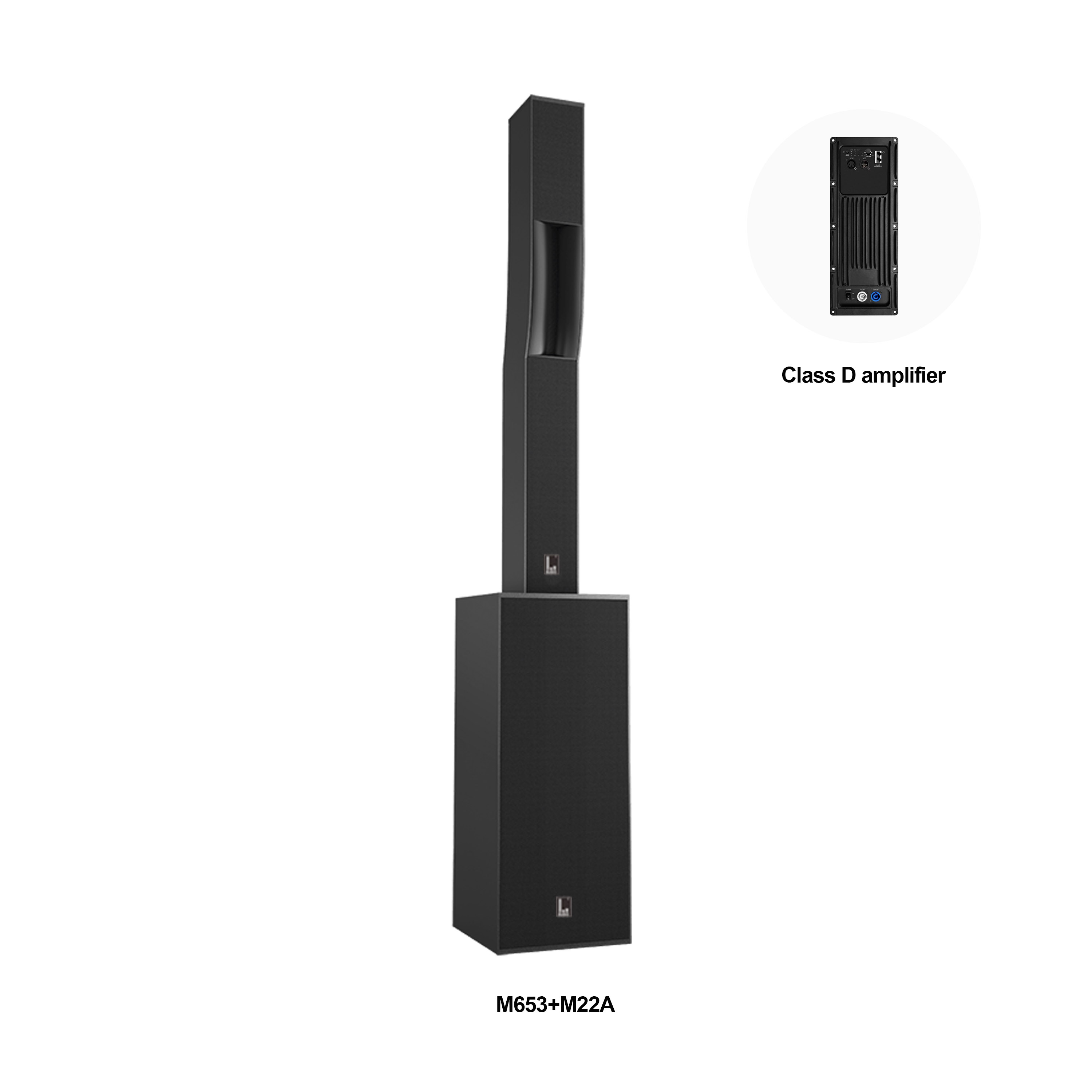

MODEL:  M653

Frequency Response        87Hz－20kHz

Power handling                 950W (RMS) 3800W (PEAK)

Sensitivity                         103dB(1W@1M)

Max@S.P.L.                      135dB(PEAK/1M)

section                               6x5''+ 3x1.75''

Nominal impedance          4 ohm

Speaker cables                 LF 1(+)1(-)

Input connectors               1×NL4MP speakon

Dimensions                       145×1300×170mm(W×H×D)

Enclosure                          Plywood

Net weight                         20 kg

Gross weight                     22kg

MODEL: M22A

Frequency Response         45Hz－150Hz

Power handling                  1200W (RMS) 4800W (PEAK)

Sensitivity                           100dB(1W@1M)

Max@S.P.L.                        135dB(PEAK/1M)

LF section                            2×12" Neo woofer

Nominal impedance            4 ohm

Input Voltage                       90-260V AC

Input Connectors                 XLR

Dimensions                         335×850×350mm(W×H×D)

Enclosure                            Birch Plywood

Net weight                           30kg

Gross weight                       32kg
