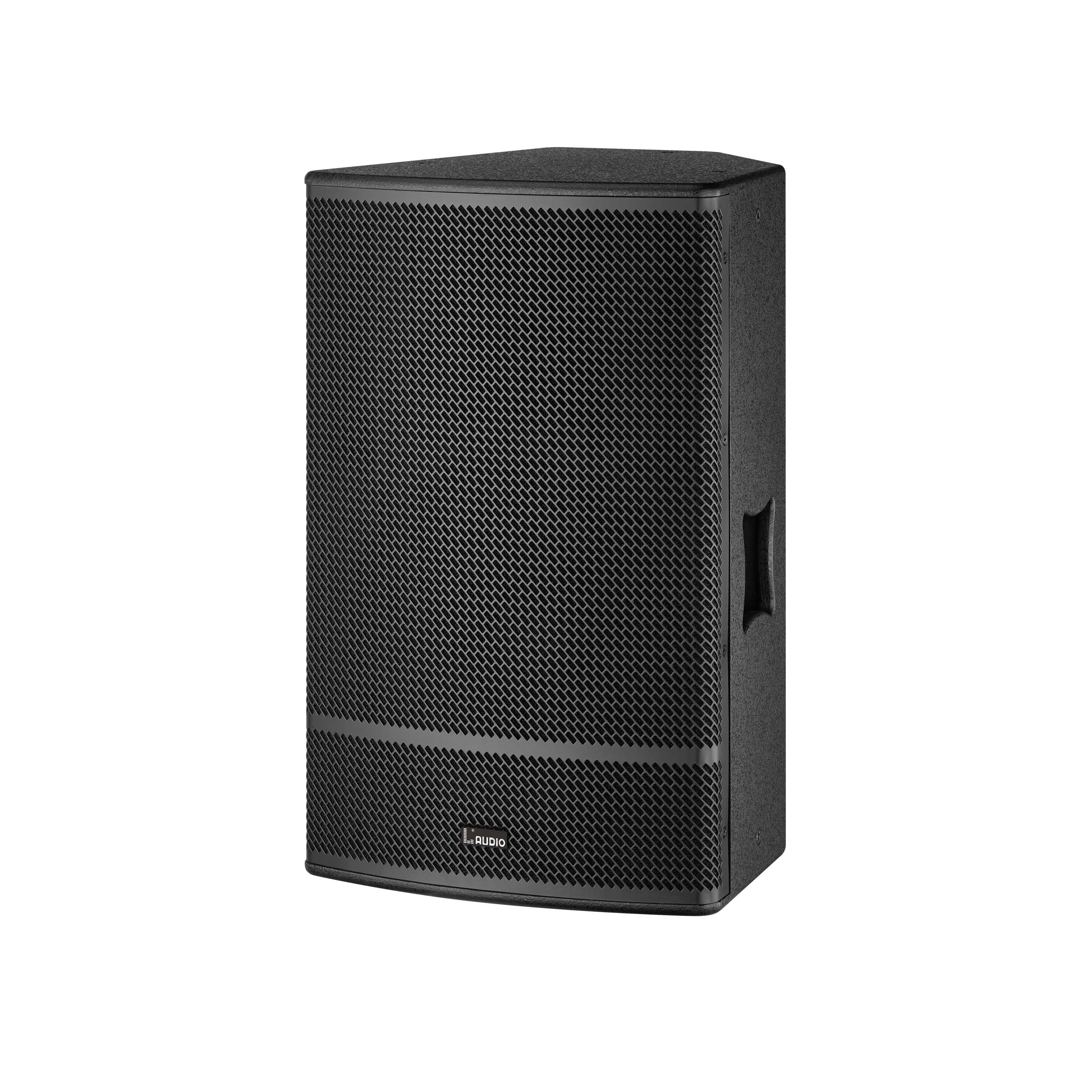

VK series speaker is the latest entainment series in 2018 designed for live performance, KTV room, bar, etc. VK series is powered by drivers with the advange of excellent timbre and high durability. In addition, this drivers could withstand high power load for long time, but with high definition. Meanwhile, the VK speaker’s great coverage horn design promotes its high frequency dynamic acoustic pressure level and sound clarity.

Applications:
Sound reinforcement system for family karaoke, KTV, bars, clubs, nightclubs, dance halls, banquet halls, multi-function halls, lecture halls, gymnasiums and other places.

Frequency Response         50Hz－20kHz
Power handling                 600W (RMS) 2400W (PEAK)
Sensitivity                          108dB(1W@1M)
Max@S.P.L.                        132dB(PEAK/1M)
LF section                          15" woofer
Nominal impedance          8 ohm
HF section                         3" NEO compression driver
Nominal impedance          8 ohm
Dispersion                         80°H×50°V
Speaker cables                  1(+)1(-)
Input connectors               2×NL4MP speakon
Dimensions                        472×691×442mm(W×H×D)
Package dimensions          535×755×505mm
Enclosure                           Plywood
Net weight                        30kg
Gross weight                     34kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
