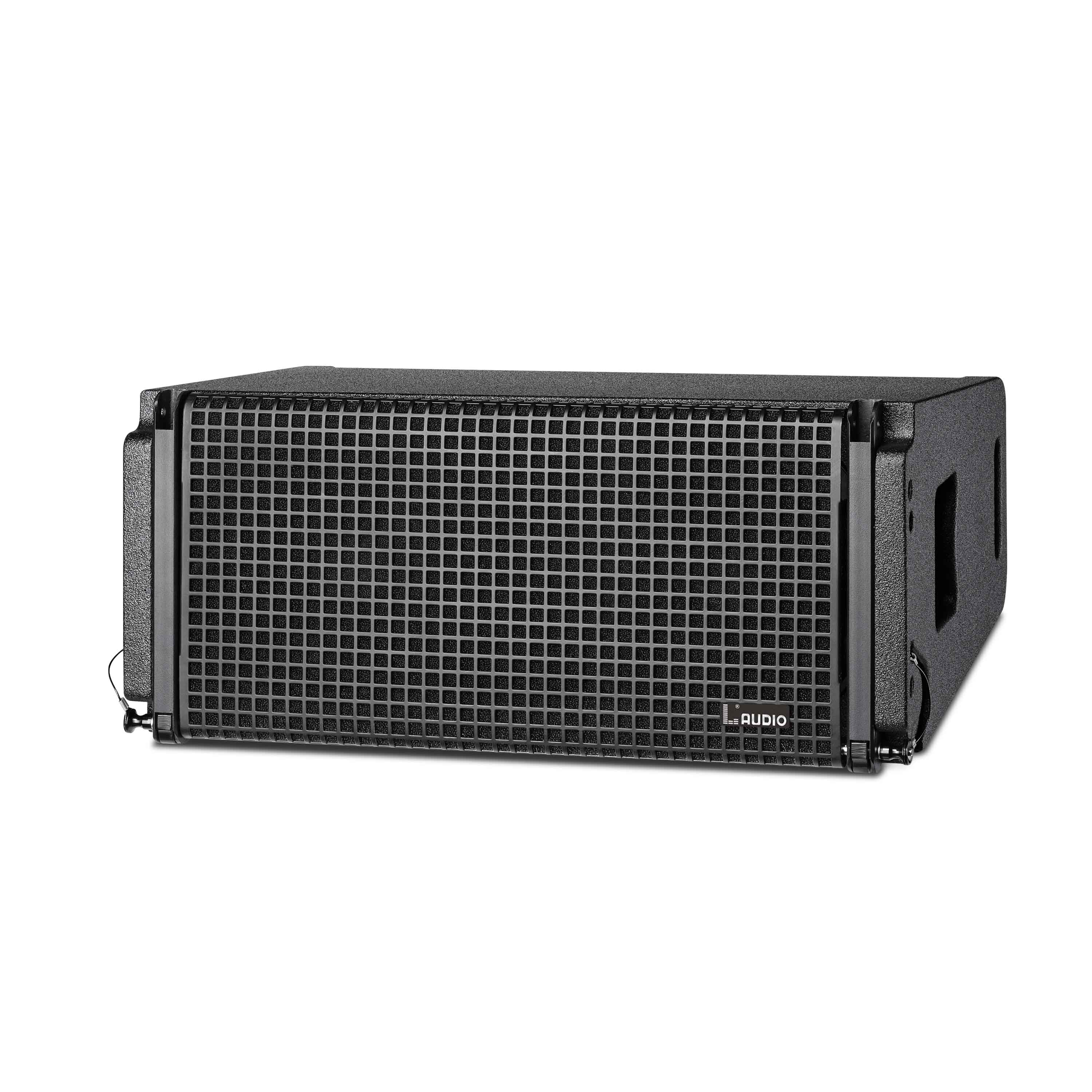

LA SERIES

Through serious and deep research, L AUDIO proudly introduces the LA Series Line Array System. The advanced technologies are widely applied together with special optimization technique results in an excellent performance and high efficiency.  To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall predict and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, L AUDIO engineers know it fairly well.

Applications:
Large and Medium scale venues including stadium, concert hall, auditorium, theatre, clubs, touring show, rental market etc.

Frequency Response        60Hz－20kHz

Power handling                LF 800W (RMS) 3200W (PEAK)

                                         HF 120W (RMS) 480W (PEAK)

Sensitivity                         LF 98dB(1W@1M)

                                         HF 107dB(1W@1M)

Max@S.P.L.                       LF 126dB(PEAK/1M)

                                         HF 139dB(PEAK/1M)

LF section                         2×10" woofer

Nominal impedance        8 ohm

HF section                        1×3"neodymium driver

Nominal impedance        8 ohm

Dispersion                       80°H×12°V

Speaker cables                LF 1(+)1(-)  HF 2(+)2(-)

Input connectors            2×NL4MP speakon

Dimensions                     600×285×400mm(W×H×D)

Enclosure                        Birch Plywood

Net weight                     26kg

Gross weight                 28kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
