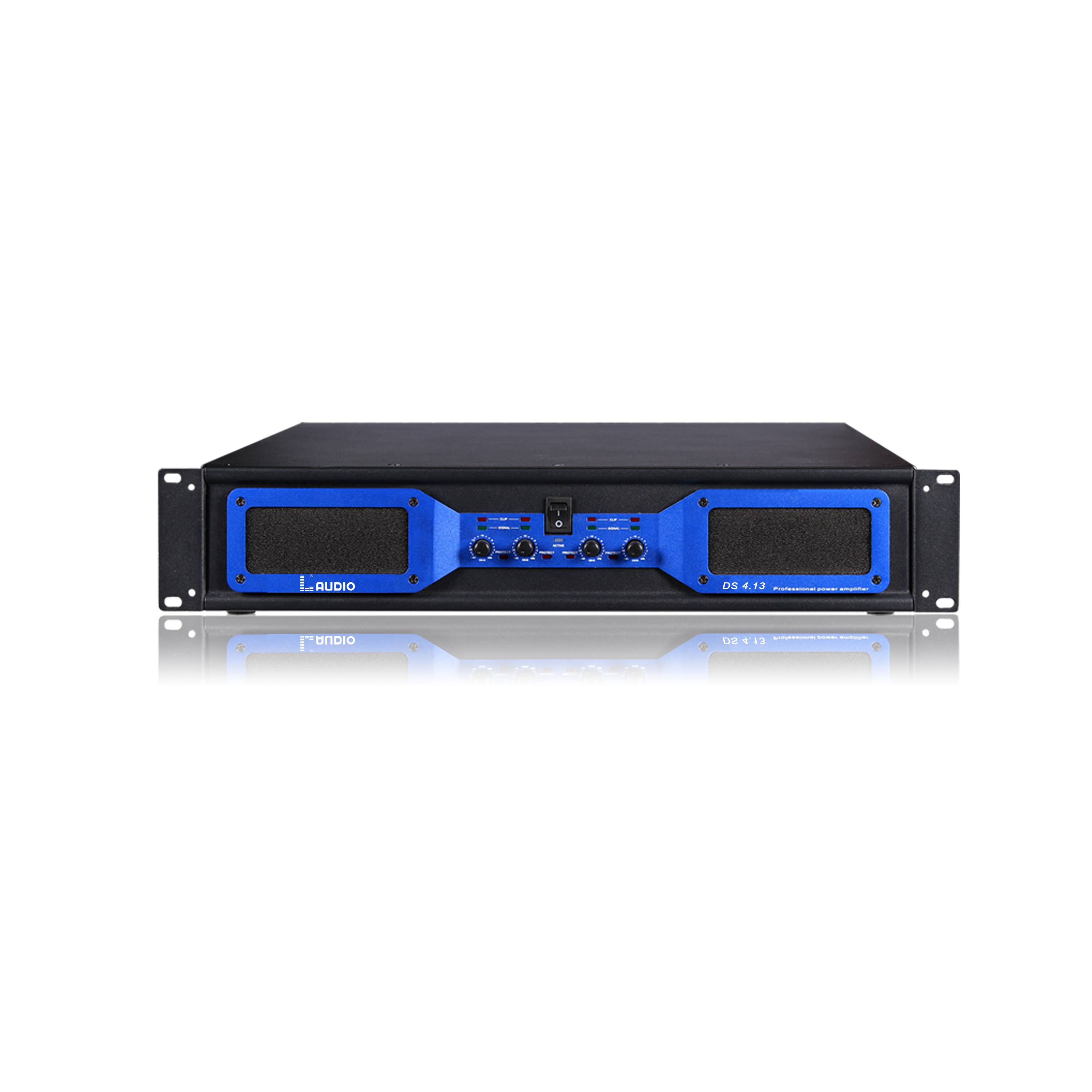

DS SERIES

The brand-new DS series of Multi-channel amplifier, it superior performance, with load capacity, able to demonstrate its capability in full-range and ultra-low frequency speakers. H class amplifier uses a hybrid engine structure, the entire power range can provide a stable signal processing capabilities, it has a high-power, lightweight carry. Product has a precise amplification can restore the true density of the sound. Closed high-density copper radiator, smart-fan system to ensure long-term safe operation of the amplifier, suitable for harsh environments. High-grade brushed aluminum panels, detachable cleaning cooling vents, high speed and efficiency with internal cooling fan. Both class A sound, there are also high-efficiency Class H, high power consumption and low heat characteristics of each channel with pressure limiting control functions.

Application:

With strong and stable power to create pure, natural, clear and full, robust sound pragmatic and memorable, DS series is widely used in high-quality sound in a concert hall needs, multi-purpose hall, performing arts center, lounges, nightclubs, etc. medium and large entertainment venues fixed installation.

8Ω Stereo Power: 4x1300W

4Ω Stereo Power: 4x2600W

Frequency range: 20Hz-20KHz +0 /-0.5dB

Total harmonic distortion plus noise: <0.07%

SNR:> 105dB

Damping Factor:> 600 @ 8Ω

Input impedance: 20KΩ (balance) / 10KΩ (unbalance)

Input Sensitivity: 1.0V

Input voltage: AC-180V-240V, (50Hz-60Hz)

Amplifier Protection: Built-in compression limiting function, ensure the system works, perfect protection circuit, switch impact protection, temperature protection, short circuit protection, DC protection.

Package Size: 590X570X150mm

Package Weight: 24KG

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
