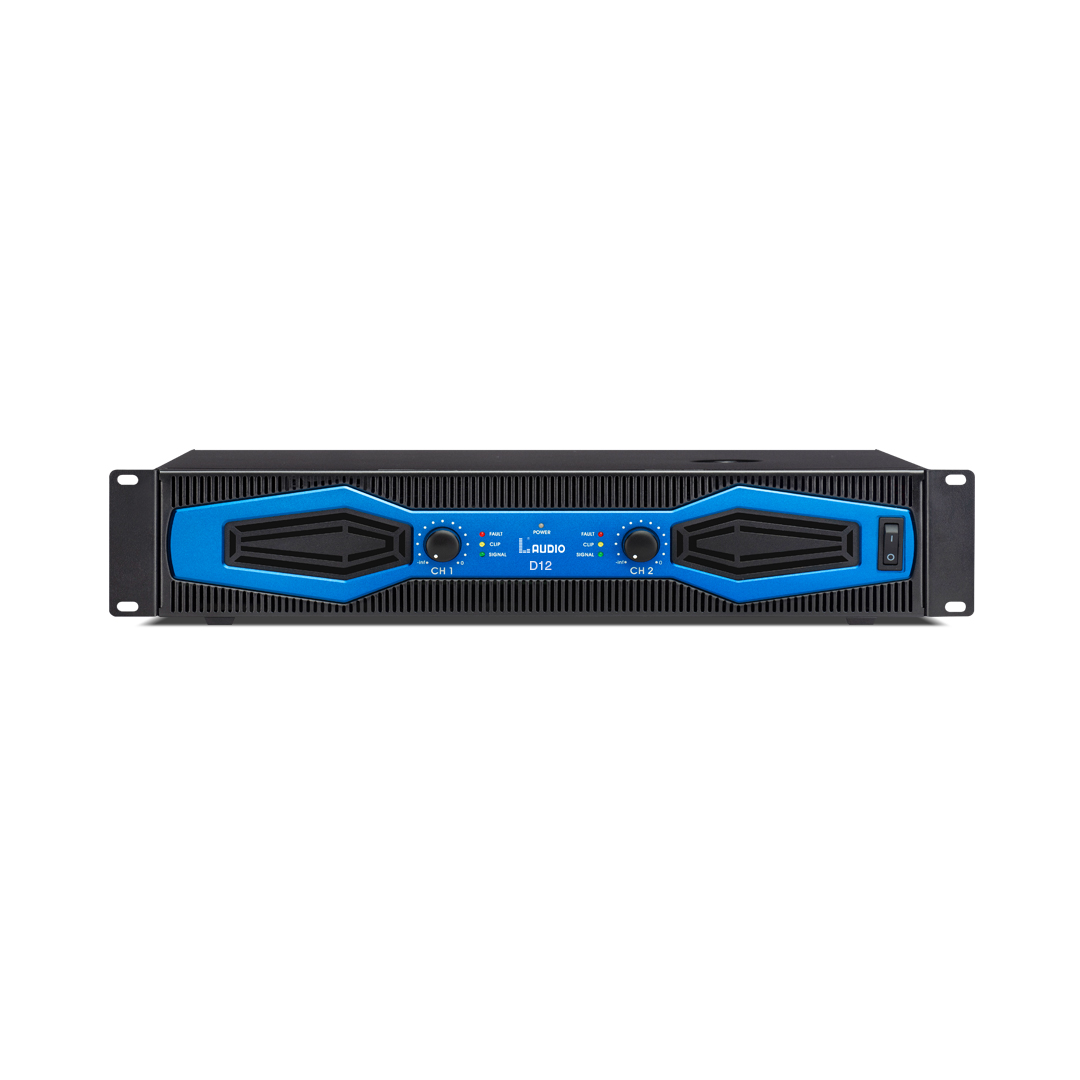

D SERIES

The latest upgraded D series AMP have excellent soft and delicate trebles, accurate low frequency control, precise and perfect audio amplification capabilities, powerful and pure sounds to meet the needs of various sound reinforcement systems.
The European-designed high-efficiency and high-stability amplification circuit, intelligent heat dissipation system and selected imported components, lean manufacturing process and long-term aging tests ensure that the amplifier has excellent performance ability and reliability.

Application
D series is widely used in churches, conference rooms, conference halls, multi-purpose halls, bar, dance halls, background music, luxury KTV etc.

8Ω Stereo Power: 2x1000W

4Ω Stereo Power: 2x2000W

Frequency range: 20Hz-20KHz (± 0.5dB)

Total harmonic distortion plus noise: <0.07%

SNR:> 100dB

Damping: (400Hz-1KHz)> 300

Input impedance: ≥ 10Kohm

Input Sensitivity: 0.775v/1.4v/2.5v

Input voltage: AC-180V-240V, (50Hz-60Hz)

Amplifier Protection: Built-in compression limiting function, ensure the system works, perfect protection circuit, switch impact protection, temperature protection, short circuit protection, DC protection

Dimensions: 483x88x360mm

Package Size: 590x190x510mm

Package Weight: 20KG

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

VAKA PRO AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
