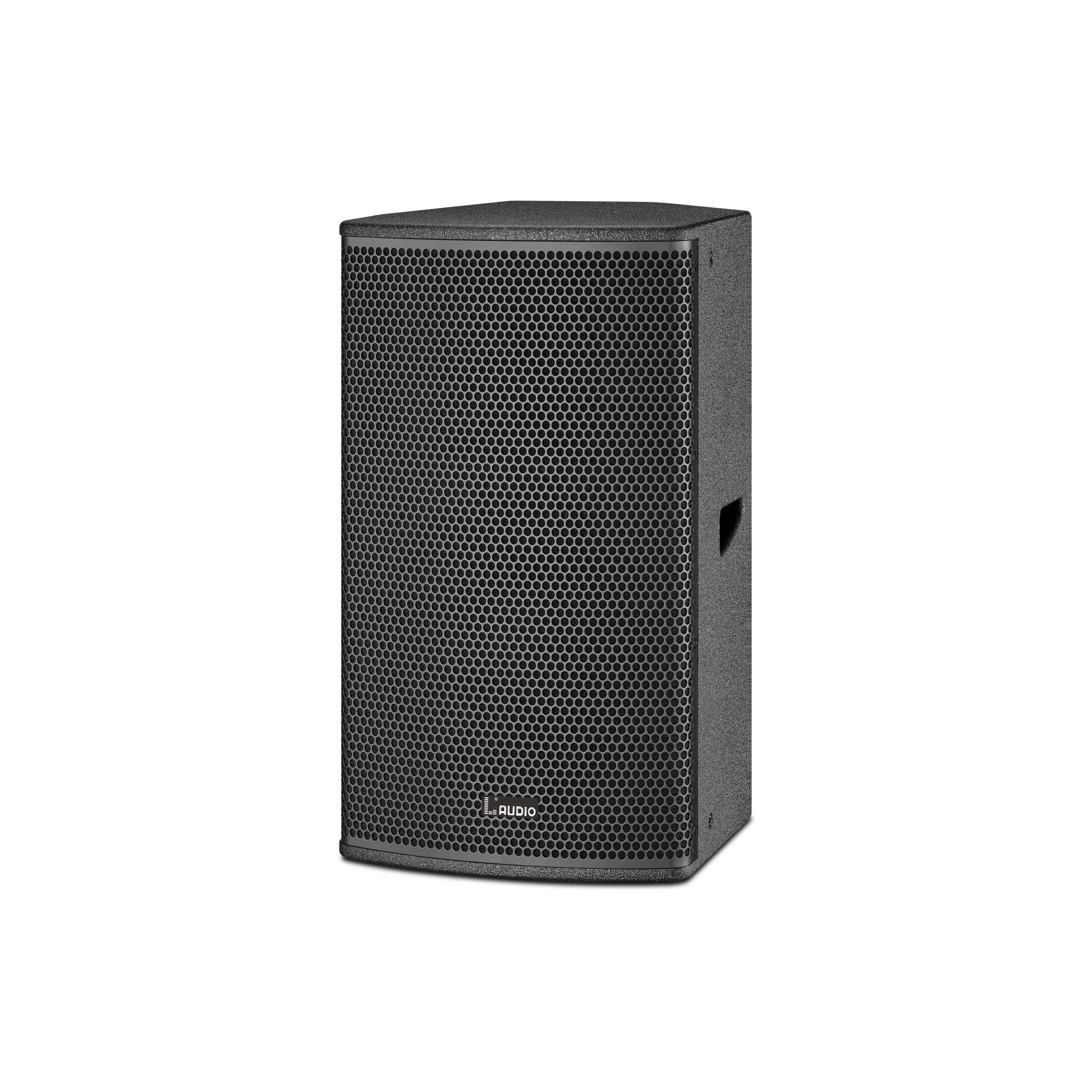

EK series speakers use a variety of techniques of multi-function amplification system, can meet the demand perfectly and maintain L AUDIO’s sound concept.
EK series adopts high sensitivity driver, collect with luxuriant appearance design concept, which making EK series speakers applied to the fixed installation, music, theatre, language, and the most ideal performance.
Meanwhile, with amazing SPL and high stability of EK series, it makes the sound better and come alive.

Applications:
It is sophisticatedly designed and ideal for Theatres, Music Halls, Large Discotheques, Night Clubs, KTV rooms, touring events etc.

Frequency Response      50Hz - 18kHz
Power handling              600W (RMS) 1200W (PEAK)
Sensitivity                       108dB(1W@1M)

Max@S.P.L.                      132dB(PEAK/1M)
LF section                        15" woofer
Nominal impedance        8 ohm
HF section                        1.75" compression driver
Nominal impedance        8 ohm
Dispersion                        80°H×50°V
Input Voltage                   220V AC
Input connectors              XLR
Dimensions                      470×740×520mm(W×H×D)
Package dimensions        540×800×580mm(W×H×D)

Enclosure                          Plywood
Net weight                        37kg
Gross weight                     42kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
