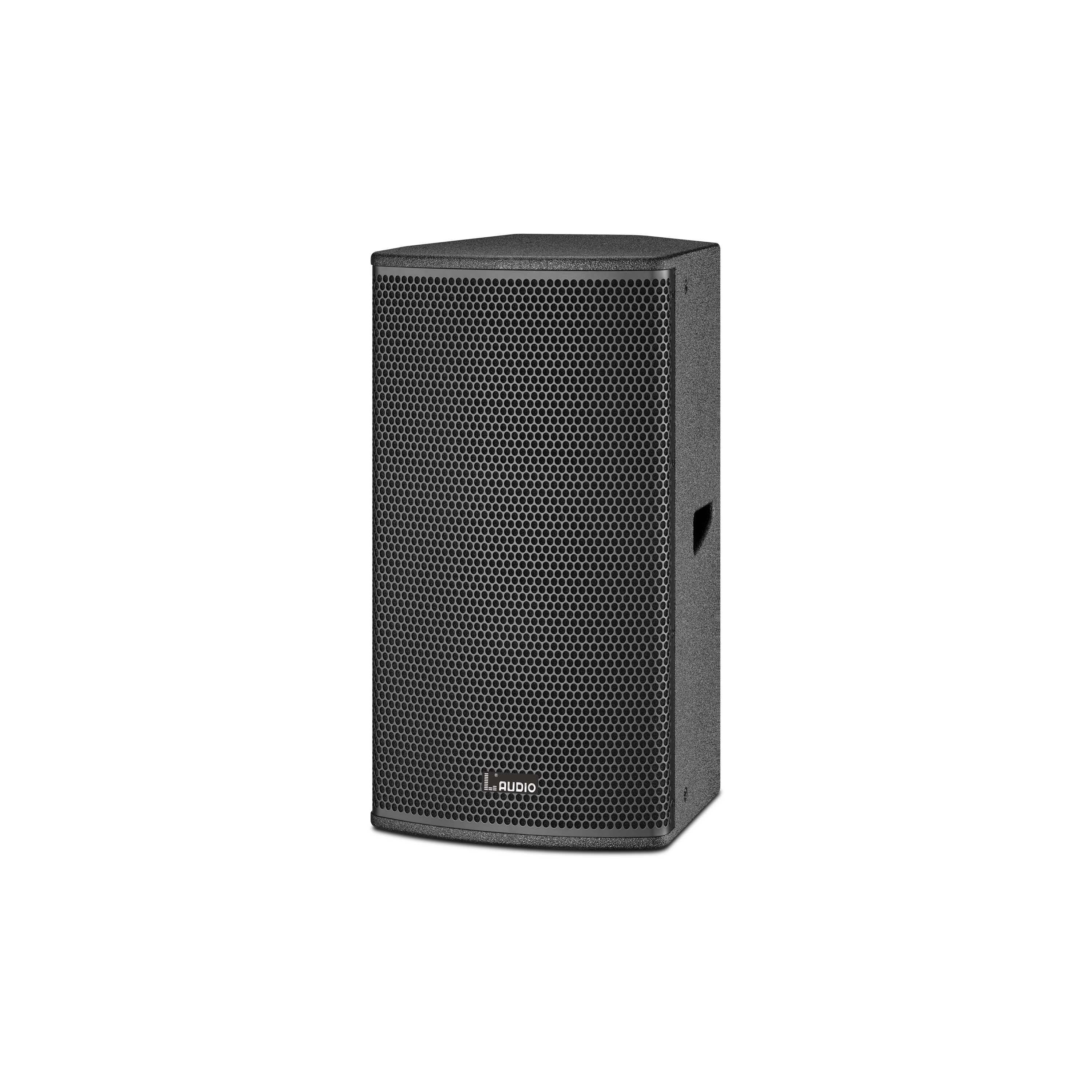

EK series speakers use a variety of techniques of multi-function amplification system, can meet the demand perfectly and maintain L AUDIO’s sound concept.
EK series adopts high sensitivity driver, collect with luxuriant appearance design concept, which making EK series speakers applied to the fixed installation, music, theatre, language, and the most ideal performance.
Meanwhile, with amazing SPL and high stability of EK series, it makes the sound better and come alive.

Applications:
It is sophisticatedly designed and ideal for Theatres, Music Halls, Large Discotheques, Night Clubs, KTV rooms, touring events etc.

Frequency Response        55Hz－18KHz

Power handling                500W (RMS) 2000W (PEAK)

Sensitivity                         108dB(1W@1M)

Max@S.P.L.                       126dB(PEAK/1M)

LF section                         12" woofer

Nominal impedance         8 ohm

HF section                        1.75"  compression driver

Nominal impedance         8 ohm

Dispersion                        100°H×100°V

Input Voltage                    220V AC

Input connectors              XLR

Dimensions                      395×640×450mm(W×H×D)

Package dimensions        455×700×510mm(W×H×D)

Enclosure                         Plywood

Net weight                       26kg

Gross weight                    30kg

Remark：

The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

L AUDIO reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
